ResponsiveImages plugin

ResponsiveImages

Automatically serve the right image size to your visitor and speed up your website

Product support

Get help in the plugin support forum.

Added on Dec 21, 2015
Current version: 2.8.0
Platform Compatibility
v3.x not tested
v2.x use latest
v1.x use latest
Created by OFFLINE
Gold partner
Public repository

ResponsiveImages

Automatically serve the right image size to your visitor and speed up your website

Features

Responsive images
Automatic WebP conversion
Focuspoint
Inline SVG helper function

The auto-resize middleware turns this

<img width="500" src="/storage/app/media/image.jpg">

into this

<img width="500" src="/storage/app/media/image.jpg" srcset="/storage/temp/public/be7/4d6/0cc/image__400.jpg 400w, /storage/temp/public/be7/4d6/0cc/image__768.jpg 768w, /storage/temp/public/be7/4d6/0cc/image__1024.jpg 1024w" sizes="(max-width: 500px) 100vw, 500px">

It automatically creates resized copies of the image and serves the most fitting one to your visitor. All image copies are saved in your public temp path. Remote file systems are currently untested.

If the visitor's web browser supports the WebP image format, this plugin will automatically generate and serve highly optimized WebP images.

The images are generated on the first page load. Depending on the source image size this may take a few seconds. Subsequent page loads will be faster since the images are only resized once.

See the Documentation tab for the configuration and usage details.

Test results

I have tested this plugin on a page with 20 hd wallpapers from pixabay.

Viewport width	Transferred file size
1920 px	21.8 MB
1024 px	3.1 MB
768 px	2.0 MB
400 px	0.8 MB

Bug reports

It is very likely that there will be bugs with some specific html markup. If you encounter such a bug, please report it.

Future plans

Exclude/Include-Filters
Maybe a component to enable the middleware only on some pages

The following theme uses this plugin

Free

MaterialKit

6 installations

# 153 in Free of all time.

Free

MaterialKit

A beautiful theme based on CreativeTim MaterialKit. Comes with a PageBuilder in StaticPages.

Responsive images

Configuration

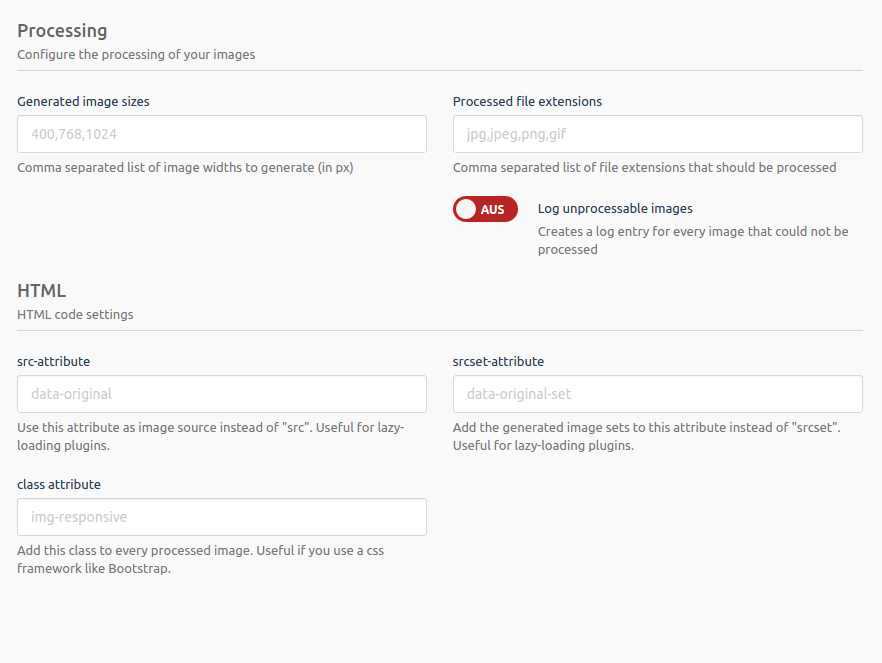

Three image sizes are created by default: 400, 768 and 1024 pixels.

You can change these values by changing the settings in the backend.

Alternative `src` and `srcset` attributes

If you want to use an alternative src attribute you can change this via the backend settings page.

This is useful if you are using a plugin like jQuery.lazyLoad where the image is initially linked via a data-original attribute.

If your plugin requires an alternative srcset attribute (like verlok/LazyLoad) this can also be specified via the backend settings.

Global `class` attributes

If you want to add a class to every processed image you can configure this via the backend settings.

This is useful if you want to add Bootstrap's img-responsive class to all images on your website.

Pre-generate images

You can use the php artisan responsive-images:generate command to pre-generate responsive images. The command uses October's pages.menuitem.* events to build a list of all available URLs and pre-generates all images used on these pages.

Test results

I have tested this plugin on a page with 20 hd wallpapers from pixabay.

Viewport width	Transferred file size
1920 px	21.8 MB
1024 px	3.1 MB
768 px	2.0 MB
400 px	0.8 MB

Automatic WebP conversion

This plugin provides an option to automatically convert all images to the WebP image format if the visiting Browser signals support for it.

Be aware that each WebP image is created on-demand with the first page view that requests it. This might lead to slow page load times for your first visitors. To prevent this, warm up the image cache by visiting every page at least once (by using a linkchecker) or use the php artisan responsive-images:generate -v console command.

To make use of this feature, enable it via October's backend settings. If you are using Apache with .htaccess support, the plugin will serve WebP images to supported browsers automatically.

If you do not use Apache, you have to configure your server to do the following:

Check if image/webp is present in the Accepts http header
Check if the requested image ends in jp(e)g or png
Check if the requested image + a .webp exists
If it does, serve it
If it does not, redirect the request to plugins/offline/responsiveimages/webp.php?path=${REQUEST_URI}

The webp.php helper script will generate any missing WebP images so they can be served directly on the next visit.

Apache + .htaccess

This is the default .htaccess configuration that gets applied automatically:

# Added by default! No need to add this manually
<ifModule mod_rewrite.c>
    RewriteEngine On

    # If the Browser supports WebP images, and the .webp file exists, use it.
    RewriteCond %{HTTP_ACCEPT} image/webp
    RewriteCond %{REQUEST_URI} \.(jpe?g|png)$
    RewriteCond %{DOCUMENT_ROOT}%{REQUEST_URI}\.webp -f
    RewriteRule (.+)$ $1.webp [T=image/webp,E=accept:1]

    # If the Browser supports WebP images, and the .webp file does not exist, generate it.
    RewriteCond %{HTTP_ACCEPT} image/webp
    RewriteCond %{REQUEST_URI} \.(jpe?g|png)$
    RewriteCond %{DOCUMENT_ROOT}%{REQUEST_URI}\.webp !-f
    RewriteRule (.+)$ %{DOCUMENT_ROOT}/plugins/offline/responsiveimages/webp.php?path=$1 [L]
</ifModule>

Other servers

We did not invest in the proper WebP detection configuration for other server software. Based on the .htaccess example above and the webp-detect repo you should be able to figure out what config is needed.

If you have a working example please add it via a PR to this README!

Focuspoint

This feature has two components to it:

Backend

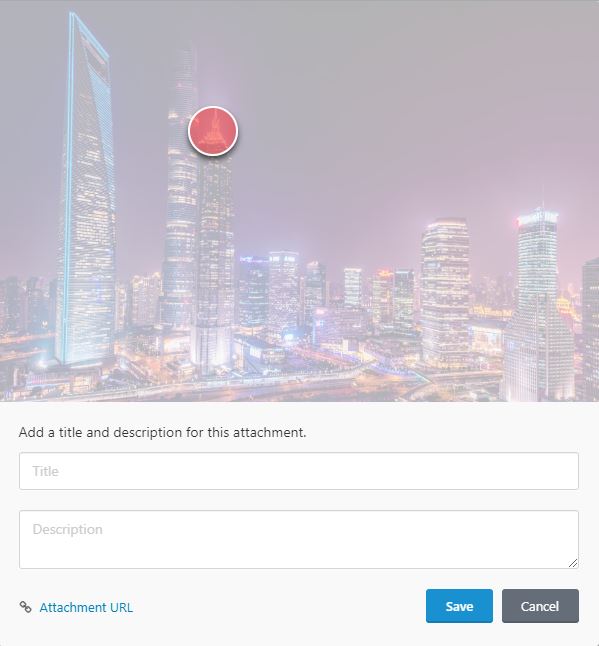

In the backend, the file upload widget is extended with a simple focus point selector.

To enable this extension simply set focuspoint: true to any fileupload widget in your plugin's fields.yaml. This feature is off by default.

Once it is enabled you can click on an uploaded image to select the focus point.

fields:
    images:
        label: Images
        mode: image
        useCaption: true
        thumbOptions:
            mode: crop
            extension: auto
        span: full
        type: fileupload
        # Enable the focus point selector
        focuspoint: true

focuspoint-configform

Frontend

You can use the new focus method on any File model to get the source to a focus point image.

The focus method has the exact same API as the thumb method, you can specify a height, width and a mode.

<img src="{{ image.focus(200, 300, 'auto') }}" alt="">

This call will result in the following HTML:

<img src="/storage/temp/public/a9f/2bd/159/offline-focus_30_400_500_50_50_0_0_auto__400.jpg"
     alt=""
     class="focuspoint-image"
     style="width: 100%; height: 100%; object-fit: cover; object-position: 30% 80%;">

You can disable the injection of the inline styles via the plugin's backend settings.

If you want to use any of the existing focus point JS libraries you can also define a custom container that will be place around the image. The focus coordinates can be injected as custom data-* attributes.

All of these settings are available on the plugin's backend settings page.

<div class="focuspoint-container" data-focus-x="50" data-focus-y="30">
    <img src="/storage/temp/public/a9f/2bd/159/offline-focus_30_400_500_50_50_0_0_auto__400.jpg"
         alt=""
         class="focuspoint-image"
         data-focus-x="50"
         data-focus-y="30"
     >
 </div>

Browser-Compatibility

Be aware that object-fit is not supported in IE without using a polyfill.

Inlining SVG images

This plugin registers a simple svg helper function that enables you to inline SVG images from your project.

<!-- search in theme directory -->
<div class="inline-svg-wrapper">
    {{ svg('assets/icon.svg') }}
</div>

<!-- start with a / to search relative to the project's root -->
<div class="inline-svg-wrapper">
    {{ svg('/plugins/vendor/plugin/assets/icon.svg') }}
</div>

Using variables

Aside from inlining the SVG itself the helper function will also pass any variables along to the SVG and parse it using October's Twig parser. This means you can easily create dynamic SVGs.

<!-- icon.svg -->
<svg fill="{{ fill }}" width="{{ width | default(800) }}"> ...

<!-- You can pass variables along as a second parameter -->
<img src="{{ svg('/plugins/xy/assets/icon.svg', {fill: '#f00', width: '200'}) }}">

Felix Eve

Found the plugin useful on 5 Feb, 2021

Good plugin, however I'm trying to enable webp support on a server running Apache 2.2 and the END flag was only added in 2.3.

Any known work arounds for the .htaccess file without the END flag?
Paolo M

Found the plugin useful on 9 Nov, 2020

Great plugin. Thank you.
Publipresse Médias

Found the plugin useful on 28 Nov, 2019

Muse have plugin that we put on every october install. You can continue to write your image tags as usual and it make them responsive with some magic. Very very great time saver.

The recent options about inline SVG and focuspoint is the icing on the cake.
Alessandro Micelli

Found the plugin useful on 23 Jul, 2016

Speed up my sites!
KBrave

Found the plugin useful on 23 Mar, 2016

It breaks the <script type="text/template"> on Responsiv.Uploader (which is the file upload/image upload plugin). See below, if originally there was open and close <div></div>, close tags are not displayed.

<script type="text/template" id="uploaderTemplateimageUploader"> <div> </script>
